Laboratory Sigma Mixer Machine

The laboratory model Double Sigma Blade batch systems provide complete, homogeneous mixing, even in small quantities.

The vessel and moving parts inside are designed to ensure consistent granulation action, and a predictable homogeneous blend in a broad range of products. A special breaker ensures movement of elements to eliminate dead spots and ensure all material are blended thoroughly and granulated consistently.

ABF introduces the modern and heavy duty, strong built Sigma mixer (kneader) to produce uniform mixing and kneading heavier viscosity materials. The Sigma mixture is suitable for many applications like mixing, kneading, Grinding, dispersion, drying etc. The sigma mixer have application to produce highly viscous materials like different kinds of Chemical, Dyes & Pigments, Paint, Polymers Plastic, Putties, Plastic, Pharmaceuticals, Printing ink, stiff pastes, adhesives, polyester Compounds, flush colors, brake lining compounds, resign, soap, PVC coatings, Rubber compounds, Confectionery, Magnetic Tape Coatings, Ceramic, Carbon Black, doughs,, Food Products, Fiber Glass, Grease, Lead Storage Battery, Soap & Detergent etc.

laboratory sigma mixer for Pigment paste

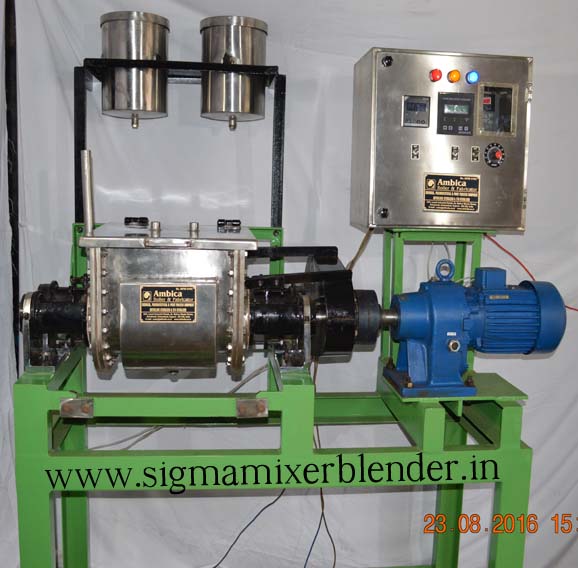

10 Liter Lab Sigma Mixer

Sigma Mixer Operation

Sigma mixer, the tangential action of mixing and kneading is thoroughly obtained by 'Z' (SIGMA) shaped kneading blades, which rotates very accurately at different speed towards each other causing product to be transferred from blade to blade. Discharge of the mixed product is achieved by tilting the container or through the valves at the bottom or by means of an extrusion screw below the container if provided

Sigma Mixer Options

  • GMP / Non GMP / models.
  • Discharge in sigma mixers is done by tilting container / bottom sliding valves / bottom gates / flush bottom gate valves.
  • Tilting in sigma mixers is done by hand liver / hand wheel with lead screw / electrical arrangements / hydraulic systems.
  • Lifting of lead either manually, with help of counter weights or hydraulically.
  • 'Z' Type Spiral blade / Naben / double naben blades to circulate hot / cold water in cases of heavy masses.
  • Jacketed shell for heating or cooling by steam, oil, water etc. with fiber glass insulation over the jacket.
  • Spray system for liquid addition / gas purge.
  • Flame proof / Non-flame proof electrical controls.

Salient Features

  • Sigma Mixer is a Batch type Mixer
  • In sigma mixer, Mixing Trough and Blades are fabricated from mild steel, stainless steel 304 and 316 grade.
  • Blades of sigma mixers are designed to obtain thorough mixing of high viscosity materials.
  • Sigma Mixers Blades are machined to keep minimum equal gap between through walls and blades.
  • Sigma mixers have fixed with Heavy-duty gears to sustaion of load of Kneading.
  • Shaft sealing into the stuffing boxes is provided by Teflon Chevron Rings / PTFE breaded gland rope to prevent leaking from blade ends.
  • Safety Guards and Grills are provided for maximum safety in sigma mixers.

Lab size Z sigma kneader/ Double Blade sigma mixer for laboratory use /Lab size Kneading Mixer : Sigma Kneader/Sigma Mixer is widely used for: plastic, rubber, silicone,chemical,CMC,BMC, soap,paint, printing ink, basoid, carbon, food stuff, medicine etc, Mixing room and agitating rotor are all made by stainless steel, The jacket of mixing room can be designed into electric heating, steam heating, steam heating or water cooling. Discharge ways include hydraulic tilt,, screw extruder and botton valve discharge etc.
