Ribbon Powder Mixer Food Grade Ribbon Blender

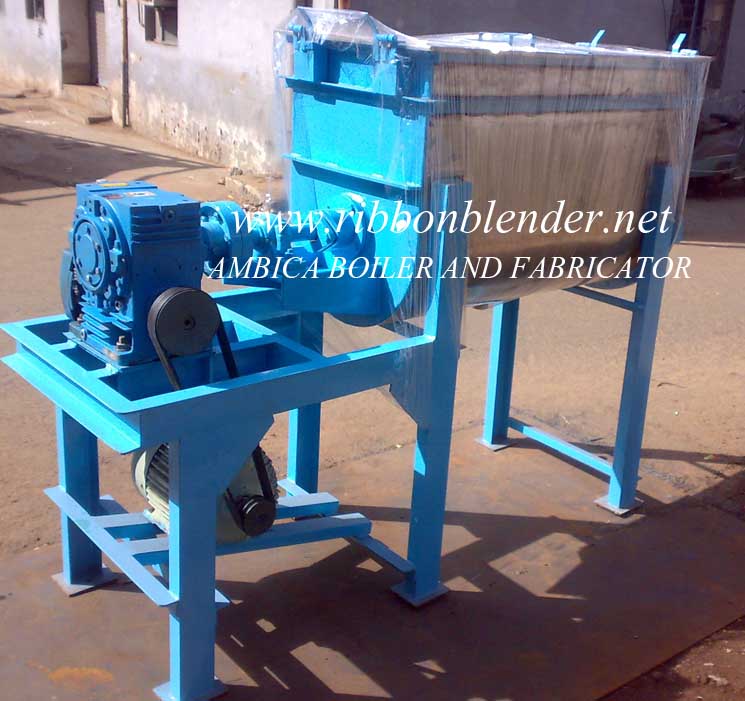

Introduction: This is a Ribbon powder mixer food grade ribbon blender ,designed to mix all kinds of dry powder .It consists of one U-shaped horizontal mixing tank and two groups of mixing ribbon: outer ribbon displace the poweder from the end to the center and inner ribbon move the powder from the center to the ends .This counter-current action results in homogeneous mixing!
Standard Specifications:
    ModelDH-JD-200DH-JD-300DH-JD-500DH-JD-1000DH-JD-1500DH-JD-2000
 Full  Volume200L300L500L1000L1500L2000L
Turning Speed46rpm46rpm46rpm46rpm46rpm46rpm
Mixing Vessel3mm3mm3mm4mm5mm6mm
Wall  Plate6mm8mm8mm8mm8mm12mm
Main Shaft 57*676*676*889*8102*8114*10
Mixing Blade 6mm6mm6mm8mm10mm12mm
Whole Length140015301700200024002600
Whole Width90010001200130014001500
Total Height145015501700196020502200
Total Weight250KGS350KGS500KGS700KGS1000KGS1300KGS
Total Power4KW5.5KW7.5KW11KW15KW22KW
Air Consumption4-6Bars
Power Supply3 P  AC208-415V  50/60HZ
